Project Budget 4×4

RAV4: Flaws, more flaws, but CUTE!

On Thursday evening, I felt the need to celebrate some serious graft during the working week. So, I took the RAV4 greenlaning – the first time I’d done so for months. After all, what’s the point in having a 4×4 if you’re not prepared to use the extra ability such a transmission gives you?

All too soon, the limitations of the RAV were coming to the fore as the underside began scraping. I had entered only mild ruts, but the exhaust system hangs very low, right down the middle of the car. You’ve also go the spindly little lower control arms to each wheel. They seem horribly vulnerable. I tried to keep the speed down as much as possible, but that revealed another limitation – the lack of a low-ratio gearbox. First gear is lower than in a normal car, but I’d say it’s only as low as third or fourth in a proper 4×4’s low range gearbox. That’s fine for pootling along, but just does not allow enough control when you want to crawl, or descend steep hills.

It can go greenlaning, but it’s not very good.

I wasn’t enjoying this as much as I’d hoped, but things were to get worse before they got better. As the ground became more uneven, I started to lose traction. This was no fault of the Michelin Latitude Cross tyres, as I discovered when I stopped. I got out of the car, and realised I could rock it and lift one of the rear wheels off the ground! The lack of suspension travel was the issue here. The RAV just isn’t flexible enough. I was forced to engage the diff lock to keep me moving. This locks the front and rear axles together, so even if one of the four wheels starts spinning, the two at the opposite end should be able to keep you moving. They did.

Oh dear. Exhaust is rather vulnerable. This isn’t a deep rut.

I progressed steadily along the lane, getting better at spotting where traction and/or ground clearance might be an issue, and adjusting my speed to suit. I was a bit concerned about a tricky section of this lane known as The Steps. However, as I continued on, I began to realise that I must have already driven up it! The little RAV had clambered up it so easily that I had not even noticed. The Steps don’t have ruts, so ground clearance wasn’t an issue. Brilliant!

This shot neatly demonstrates the maximum suspension travel. Not much.

I made it to the end of the lane, disengaged the diff lock and hurtled home, enjoying the excellent handling that the RAV4 offers – certainly not something most ‘proper’ 4x4s can match.

The next day, I had to help a friend remove a dead Delica from a car trailer. This spares vehicle had no front axle, so the plan was to pull the front end off the trailer, put it on blocks and then pull the trailer out. Simple, though things were complicated when his own working Delica refused to play ball due to a charging issue – ie no alternator! It wasn’t happy to work.

So, the RAV was called into action. Again, I would have loved a low ratio gearbox, as I was having to work the clutch quite hard to control the pace. We didn’t want to do this quickly! Also, the driveway was very uneven, with the front offside wheel of the RAV heading up a steep bank due to the limited room we had to manoeuvre. This neatly took the weight off one of the other wheels, and so the difflock was called into action once more. It did the job, but there was quite a whiff of clutch!

Not ideal for towing projects, but it did do it!

This has highlighted some difficulties with this car. It isn’t very good as a 4×4. Now, I don’t need the ability of a 4×4 very often, so it does make it difficult to justify owning one. The RAV can just about cope with what a throw at it, so perhaps it justifies itself?

But, it’s not a great car to cover distance in. The seats are particularly poor, and the ride isn’t what you’d call comfortable. Despite that, I think I’ll be taking it on a mini-roadtrip next week, before probably taking it to France.

I must conclude though, despite its flaws, the thing that keeps saving this car from a fleet cull is the fact it’s so bloody cute! I absolutely adore the styling, front and rear. How dull and dreary the RAV4 would become in later forms. It would never have this much character again. It may not be very good at all the things I ask of it, but the fact is that it can and has done them. The lack of off-road ability makes it more challenging for the driver. Isn’t that a good thing? It may have struggled with the towing task, but it did manage it in a way a two-wheel drive car would not have. Doesn’t that make it good? After all, it tows the caravan rather more comfortably than the XM, which I truly did not expect (they have the same stated maximum towing weight of 1500kg).

Maybe I should give this little soft-roader a bit more credit. Sure, it’s a master of absolutely nothing at all, but it can turn its hand to many different activities. That sort of requirement is exactly why I love the Citroen 2CV. Maybe my little inferior 4×4 will be the steed for our upcoming trip to France after all.

Now with video!

Video: Mitsubishi Pajero Junior

I love small cars, and 4x4s don’t get much smaller, or cuter, than the Mitsubishi Pajero Junior. Well, ok. There’s the Pajero Mini as well. Full details below! The test features on and off-road antics.

Another dream achieved. Baby 4×4!

I’m particularly thrilled with this one, as I love 4x4s that have proper 4×4 functions. This is not a mere city car with chunky looks. The Pajero Junior was never officially sold in the UK, but many of the 70,000+ built were imported. It was replaced in 1998 by the Pajero Pinin – sold as the Shogun Pinin in ~~Europe~~ the UK, and built by Pininfarina. That’s also a 4×4 with very genuine ‘rough stuff’ ability.

Discovery – saving the hopeless

Apologies for the quiet spell. I’ve been very busy playing with a brand new electric car, tackling the annual classic love-fest that is the NEC Classic Car Show and buying unnecessary musical instruments.

After some quite major surgery, the Discovery is very nearly ready for the road once more – with winter about to hurl some entirely expected weather our way. I didn’t own a 4×4 last winter and…things were absolutely ok. There is comfort from all-wheel drive when grip levels begin to plummet though, even if I am not one of those muppets who thinks a bit 4×4 can somehow defy the laws of physics. I still drive for the conditions!

Getting the Discovery back will be pleasing though. It now contains many less holes and boasts actual metal in many new and important places – such as the floor and sills. My welding friend suggested it was only luck that had prevented me falling through the footwell as the strongest part of it appeared to be the carpet.

Driver’s footwell was well ventilated

Dave is a handy fabricator though, and he was soon letting new metal in all over the place. Once he was done, I covered all new metal in zinc-rich primer and then added a top coat. The only paint I had kicking around was a tin of Tobacco Leaf – a delicious, non-PC shade that adorned the Rover P6. Fittingly, these Rovers were built in the same factory as my dear old Disco, so I felt it was fine to use. These sections will be out of sight once the vehicle is back together again, and Tobacco Leaf is pretty much the same colour as mud anyway.

The sills went from this:

Initial ‘Discovery’ of rot

To this:

Tobacco Leaf sills

The welds aren’t neat because they won’t be seen anyway. Spending time grinding them down seemed a bit excessive.

Mind you, some might say that spending £300 on welding up a tired, rusty £450 Land Rover was a bit excessive. They’re probably right, but I find myself becoming rather fond of this clapped out relic. My plan was to buy cheap and fix it if I liked it. It’s a simple plan and like many simple plans, it works and makes me happy. Now I need to try and stop some of the water leaks so the new floor doesn’t go the way of the old one. But stopping a Land Rover from leaking water is like trying to stop the Earth from turning. I feel a challenge coming on.

Discovery – rotten sills

While I’ve been healing, I’ve done very little driving in the Discovery. But good news – my thumb is much better! I can now drive all of my cars again and, as I discovered this afternoon, I can work on them again too!

The Discovery was lucky to get through the MOT due to sill corrosion. It was an advisory item because most of the rot was hidden by a sill cover, which the MOT tester is not allowed to remove. Me and my mate Dave are fully qualified though, so we pulled off the trim.

Initial ‘Discovery’ of rot

As you can see, it was properly rotten. Thankfully, rot seemed to be confined to the outer sill – the inner generally seemed sound. Gaining further access to the sill isn’t easy. A Discovery 3-door becomes a real challenge if you need to replace the sills. A common bodge is to just cut the lower bodywork. That’s a clumsy way to do it. We opted to drill out the spot welds holding the outer panel in place, which allowed us to wedge it out of the way.

Drilling out the spot welds allows this panel to be moved

Naturally, things were a bit grim behind there, but not as bad as they could be. There’s an inner skin of steel, which had started to corrode. This is because road muck from the rear wheels gets forced into the cavity, but it’s impossible to clean it out, so rot can merrily start. Further surgery was required though. It was time for power tools.

Cutting away the rusty metal

The key to a good repair job is to get rid of as much rusty panelwork as you can. You must find good metal – there’s no point leaving rusty stuff as it’ll just make your new repair fall apart. As we dug and dug our way in, I had to start stripping the interior out to prevent it catching fire during grinding/welding.

Some fabrication needed around the body mount

By the time I had to leave, my mate Dave had got to this stage. More of the inner sill needed removing that we first thought, but that’s the nature of rot-busting. Once all the rot is gone, Dave can get on with fabricating repair sections in nice, thick steel. I was tempted both by complete replacement sills and the idea of fitting seriously beefed up ones. I’ve decided I prefer Dave’s fabricated approach though, which will use good metal, only replace what needs replacing and by the time we’ve finished, will hopefully leave it looking pretty much stock.

I’ve decided that I don’t want a monster truck. The closer this vehicle remains to factory, the better.

Discovery: Still performing

You could be forgiven for thinking I only currently have eyes for oddball Japanese city cars at the moment, for I seem to have been truly captivated by the Sirion. But there are other vehicles on the ClassicHub fleet, and I still like those too.

The Discovery continues to provide sterling service and is steadily improving as I get on top of its lengthy To Do list. I can’t really describe why I love the Disco so much, but it gives off vibes that just make me happy. This weekend just gone, I headed northwards for my second session of off-roading at Landcraft. I’d visited the site back in August, and a report of that has just been published in the December 2013 issue of 4×4 Magazine. Thing is, I enjoyed it so much that I just had to return!

As I tackled the many bends between our house and Bala, I must say that the Discovery feels very odd to drive after 250 miles in a small, Japanese hatchback. The Disco is heavier to drive, and slightly cumbersome, but still eats the miles effortlessly, with the rev counter rarely rising about 2500rpm – stark contrast to the frenetic three-pot in the Daihatsu.

Once there, I had a splendid time once more. We were joined by Land Rovers of many eras, from a very early Series 1 to a Discovery 3, with all its many electronic aids. The Series 1s looked more fun! Again, my Discovery coped well. Its lack of modifications or aggresive rubber mean line choice and momentum are absolute critical. It’s a very good work out for car and driver.

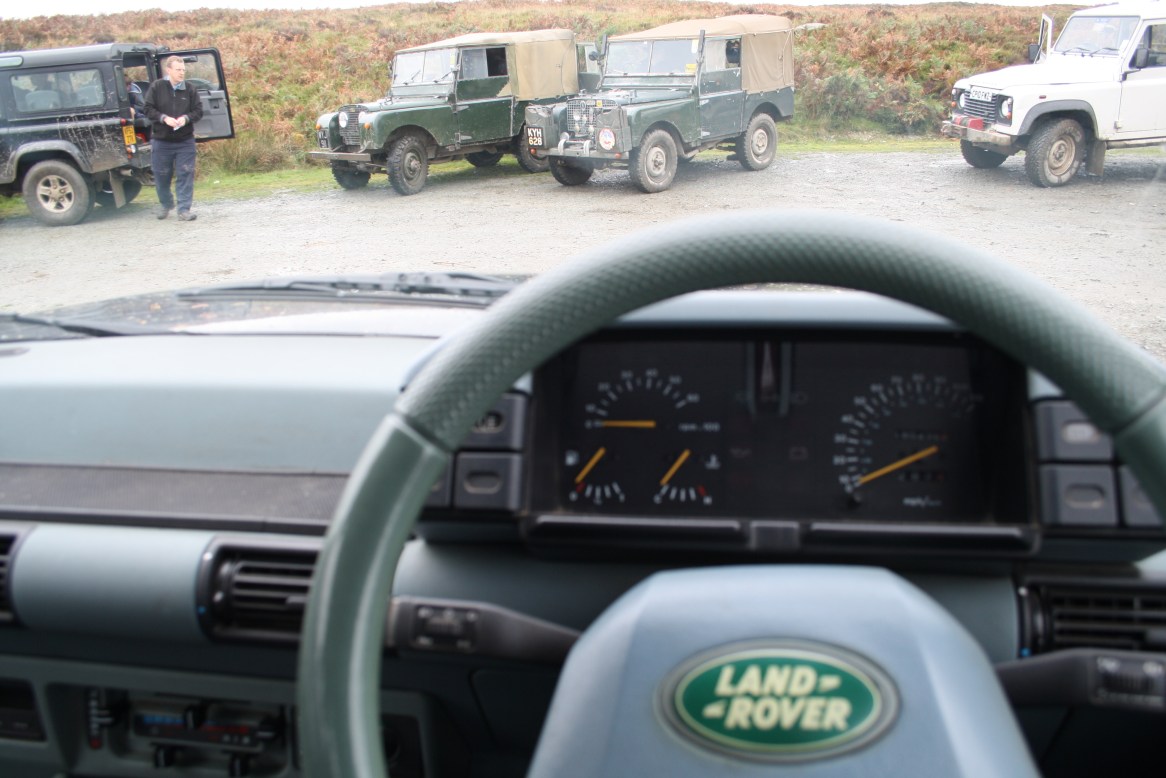

Series 1 Landies looked great fun

In many ways, much of the technology of the Series 1 is still evident on my Discovery. It has similar beam axles (albeit with a change of suspension spring), a similar ladder-frame chassis and fairly simple aluminium bodywork. Both wear skinny tyres too, and traction was certainly an issue at times, for ancient and less-old alike. That’s all part of the fun really. The Discovery 3 seemed to just amble around the course without fluster. It didn’t look half as much fun!

Skinny tyres worked hard in the mud

The Disco’s towbar took a few knocks, but damage was otherwise only notable by its absence. That’s what I like about Landcraft – it’s designed to be fun but these Adventure Days are gentle enough to easily avoid damage. I’d quite like to tackle one of the Adventure Plus days, but that brings me back to the main problem of recovery points. On the Plus days, it sounds like getting stuck is very possible – though it’s something I always try my utmost to avoid. The Discovery has no front recovery points though, and I’m struggling to find a way to fit any that doesn’t compromise the factory looks. Perhaps I’m going to have to admit defeat and fit a stronger Heavy Duty bumper.

Lack of front recovery points an issue. If you get stuck…

It’s a dilemma for me. I love off-roading in stock vehicles and prefer the lack of on-road compromise that results from it. I don’t want to make my off-roader look butch and menacing. Sadly, if I want to enjoy myself more, it looks like modification is the only way.

Here’s a video of Sunday’s exploits as I have to carefully manage the throttle to avoid wheelspin while still keeping up enough momentum!

Video

Disco comes to grief

It’s quite easy to get a bit blasé about greenlaning. I’ve been doing it for years, and have been proud of the fact that I’ve never got stuck and have generally avoided any damage to my car at all. That changed last night.

We were tackling a tricky lane in Nant-y-Moch, one which will be closed in a few days time for tree felling. Me and a friend thought we’d get in before the chop so to speak. It’s a lane we both know well, and one which I’ve travelled down twice in the past couple of months, with no drama at all. Going up the lane is much more difficult, but I’d successfully done so in the Maverick last year, albeit it was very much a challenge that required several attempts.

I got through what I thought was the tricky section with no problems. Easy! It’s all about momentum – going as slowly as possible, but quickly enough to keep moving. Then the lane began to tilt the Discovery onto its side. One side of the lane had been washed out very badly, and I mis-judged just how bad things were. The front end began to slide into the bank and the rear followed. I eased back and forth, but there was no escape. I was lodged firmly against the bank. My options were to attempt recovery or risk much damage.

Ouch! Firmly stuck, and a bit bent

With the front indicator housing already snapped off its mountings, recovery seemed the sensible option. I could drive forward to free the front end from the bank, but was powerless to do the same with the rear. My friend in his Defender was deployed and a short, sharp tug pulled the back end away. I could then reverse down the lane to ponder our next move and repair damage!

Putting it back together

We used string to hold the indicator housing in place. I think superglue should mend it longer term. That wasn’t the only damage though.

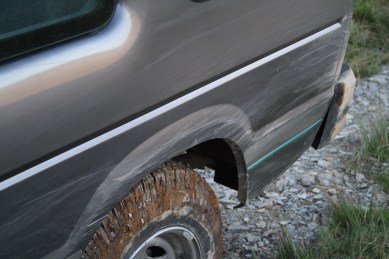

Oh dear. Paint took a beating

The entire side is now littered with scratch marks, some of them quite deep. Fortunately, the Discovery’s side panels are aluminium, so corrosion is not a problem. I’ll have to see what I can do about tidying it up a bit.

My friend then set about getting even more stuck than I had managed, so the rest of our adventure involved trying to free his Defender – a fine education in how to use a hi-lift jack and the importance of having a shovel. With his car free and light fading, we opted to abort our adventure. We’d got all of about half a mile into the lane! Our local laning group is already plotting repairs to this lane, so hopefully when it reopens in 2014, it’ll be in far better shape.

But for me, I’m now rethinking the future of the Discovery. My initial plan was one of preservation, keeping the Disco as original as possible. Now I’ve damaged it and also realised how poor a standard Discovery is when it comes to recovery points, I’m considering a change of direction. Is it time to make with the modifications? Do I really want a vehicle that looks more aggressive? It’s perhaps time to answer those questions.

Disco: Stop, carry on

As described earlier, my plan to drive to North Yorkshire in the Discovery only last three miles. I think it probably goes down as one of my least successful journeys ever.

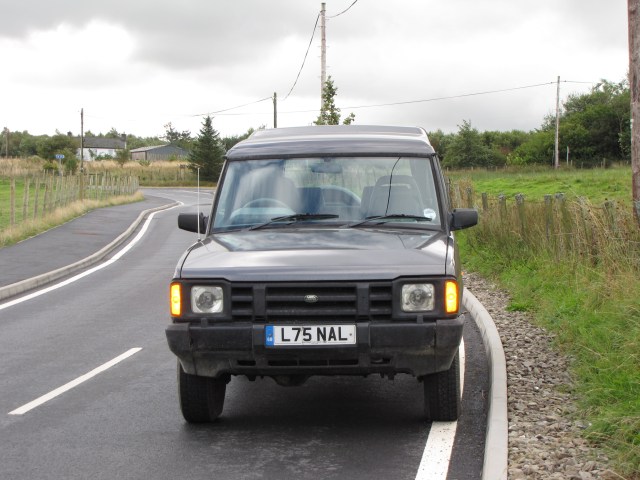

Going nowhere

A bang, a clatter and then the front nearside wheel locked up. Fortunately for me, it was wet and the front wheel happened to be on a white line at the time, so the retardation effect was not too dramatic. Enough for me to know that my destination was well out of reach though.

I nervously limped home at 20mph (the hazard lights got a lot of use that day), not daring to go any faster because of the hideous noise coming from the front end. Knowledgeable people reckoned it was likely to be a failed wheel bearing and the grumbling noise certainly seemed to back that up.

Yesterday, I limped to my mate Dave’s house, where we pulled the front hub apart. The outer bearing looked fine, but when the pulled the hub off, the inner bearing simply fell out in many pieces. It was absolutely bone dry and the failure had been sufficient to turn the inner collar on the axle shaft – that takes some force. It took some force to remove it too, but happily, with plenty of grease and a fair degree of effort, the new bearings were soon in place.

What a transformation. The bump-shake tendency when hitting a pothole with the nearside front wheel has gone entirely and it all seems a lot quieter too. That’s the thing with permanent four-wheel drive – there are an awful lot of moving parts, and it becomes difficult to hear one over any other. I certainly noticed the difference once the duff bearing was gone though!

I’ll hopefully be putting it immediately to the test as the plan is to go greenlaning in Gloucestershire this weekend. Hopefully it’ll make up for the lack of Disco laning last weekend – fun as it was. I didn’t buy the Disco so I could go laning in someone else’s vehicle.

It has been interesting to find that I’ve now clocked up 1200 miles in the Discovery, even though it stayed at home last weekend. That’s in just over three months of ownership – IIRC I only managed 1500 miles in eight months with the Ford Maverick. The improved economy of the Discovery is certainly a factor – 27mpg compared to 20-22 – but the Disco is much more comfortable as well, and I find it much nicer to drive on the roads. Certainly, this is one vehicle I remain very happy about buying.

The day I tried to drive to Shitefest

Firstly, I apologise for the language, but I’m a member of the excellent Autoshite forum and so it seemed natural to call our now annual gathering Shitefest. The forum is dedicated to old cars, but with the twist that we love cars that are often seen as undesirable and usually deeply unfashionable. Some like driving cars that look like wrecks (subtly different to Rat Look, where cars are MADE to look like wrecks), others cherish their unloved cars with a dedication that can only be admired. I hope I fall somewhere between the two…

Anyway, the net result of all this is that a very excited me spent AGES last week preparing the Discovery for its trip up north. Levels had been checked, a specialist had given it the once over and I’d carefully loaded it up with everything I’d need. I leapt aboard and began my 160-mile journey to North Yorkshire. That journey ended after just three miles. The Discovery made a horrific clattering noise, a wheel locked up and I found myself stopped at the side of the road. The locked wheel was on a wet white line, so thankfully things didn’t get very exciting. I jumped out, expecting to see differential teeth or bits of propshaft littering the road. Nothing. Odd.

I jumped back in, took the handbrake off and marvelled at a car parked on a hill that wouldn’t roll. I selected reverse and gave it a bit of welly and it did go backwards. It then rolled forward again, but making a rather horrible grinding noise. Still, it was better than not moving at all so having dismissed the idea of limping on another 157 miles, I meekly drove back home at a steady 20mph. It would have to be the Golf as it was raining quite heavily and the 2CV is about as watertight as tissue paper.

No careful packing here, I just hurled everything out of the Disco and into the Golf. The Golf was low on fuel, but hopefully not any other vital fluids. I had recently carried out a service, so the oil was probably ok, and had topped up the coolant after replacing the heater bypass valve. I raced northwards as quickly as a plague of sodding camper vans would let me, which wasn’t really as quickly as I’d hoped. I’d thoroughly missed my traffic window and Newtown was its usual snarled up, hideous self. That’s ok, as the cooling fan was cutting in as required. But then the entire car started shaking as the fan cut in for a second time. I’ve known it’s been a bit iffy for a while, but naturally it chose an important country-crossing journey to REALLY play up. My solution was to put the heater blower on full. I was now far too hot, but the car, importantly, wasn’t. Rain prevented me opening windows too readily.

Then I hit resurfacing works on the A458 approaching Welshpool. This seems to happen with depressing regularity. Thankfully, the five-minute stop allowed me to turn the engine off completely to avoid overheating. Oswestry, Wrexham and Chester were circumnavigated and after two hours, I found myself on actual motorway at long last. It was now just after 5pm though, and traffic was heavy. That meant more heater action and my new regime on sighting multiple brake lights up ahead was check mirror, slow down, put heater on, downshift as required, increasing heater blower speed if speed reduced too much.

That was bearable until I reached the M6. Here, it was very stop-start, which unfortunately is just how the Golf’s engine decided to behave. If I let the revs drop below 1500rpm, even in gear, it cut out. This was not much fun, as my new regime on sighting multiple brake lights ahead was check mirror, slow down, put heater on, try and downshift while also braking and blipping the throttle without crashing into any other vehicles due to trying to operate three pedals at once. I may have cried, but due to having the heater on full blast, any tears would have evaporated very quickly.

After twenty minutes of this, I was getting cramp in my legs and wishing I’d come in the 2CV after all. Happily, after another longer stretch of clear motorway, normal service was resumed. I can only assume that the very soggy leg up to the M6 had caused damp to play havoc with the spark plugs and HT leads, both of which I know are far from perfect (but have remained on the To Do list while I try and earn money rather than spend it all on cars).

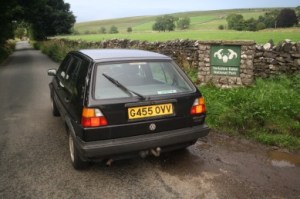

North Yorkshire. Finally! What a day

Was the event worth the stress of getting there? Find out in the next installment. Here’s a clue…

Ian (left) trying to play it cool in the back of a Frontera

Disco: Greenlaning woes and wheels

It has taken several months, but I’ve finally finished refurbing the Discovery’s steel wheels. I’m very happy with the results.

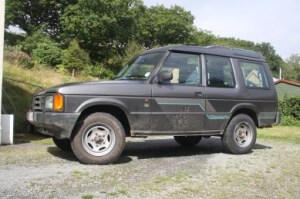

Looking good on refurbed wheels

Actually, the work itself only took a few hours, though it’s a job that requires a huge amount of waiting. I rubbed the wheels down – with a wire brush initially, then sandpaper. I then applied two coats of brushed zinc-rich primer, to hopefully keep the rust at bay, before spraying two coats of silver wheel paint followed by two coats of clear lacquer. I then waited a few days for the paint to harden before getting them refitted. Sadly, the loss of sunshine meant the paint was still a little soft. I’m hoping it’ll be ok.

It now looks far, far better than it did when I bought it. Here’s a reminder.

As she arrived. Shonky

To recap, the front bumper has been painted, the sill steps removed (as they were entirely rotten) and the wheels refurbed and then fitted with new, narrower rubber. The tyres are now correct for what early Discos wore as standard – 205/80 R16s. It came on 235/70 R16s which were optional. I prefer the look of thinner rubber and reckon there are advantages in mud and snow too.

I’m very pleased with how this car is coming along and will be using it this weekend for a lengthy trip to North Yorkshire, for a car meet and to explore some greenlanes up that way. I fear that the future of greenlaning is far from secure, with the news breaking just today that The Roych greenlane in the Peak District now has a Traffic Regulation Order on it, banning the use of mechanical vehicles. No doubt ramblers will be overjoyed at the news, but I’m deeply saddened. When you consider the amount of greenlanes you can drive versus the number of footpaths, there is a massive difference. It is very, very easy to find hundreds if not thousands of footpaths that go nowhere near a greenlane. I fear this is just the start of the end for greenlaning, which I find desperately sad. Sadly, I fear it’s a hobby ruined by a few idiots and as more lanes close, heavier traffic will develop on the remainder until those are lost to us as well. The countryside should be for all. There’s still enough of it out there! The people complaining don’t seem so ready to call for actual, metalled roads to be closed – the ones they use to access the countryside. A bit of toleration goes a long way and after all, I quite like to enjoy the countryside on foot, not just behind the wheel of a 4×4.

Anyway, I’m looking forward to seeing how the Disco performs on a long trip and shall report back next week.

Disco demonstrates abilities

Found time this morning to stop tinkering with cars and actually drive one for a bit. Took the Land Rover up to a favourite greenlane that I’ve not yet tackled in it.

As you can see, that long travel suspension is marvellous stuff for loping over rocks. As you can hear, there really is a lot of play in the transfer box.

Hope you all have an enjoyable Bank Holiday weekend!
